Geotextile Solutions

Sludge Dewatering & Marine Erosion Control
Part of an integrated sludge management or marine erosion control program, our High Flow Geotextile Bags are the product of choice for a wide range of challenging applications.

Our Geotextile Tubes are fabricated using high tensile strength, good permeability, high durability, and optimal pore size delivering superior dewatering performance and preventing external environmental shock and damage.

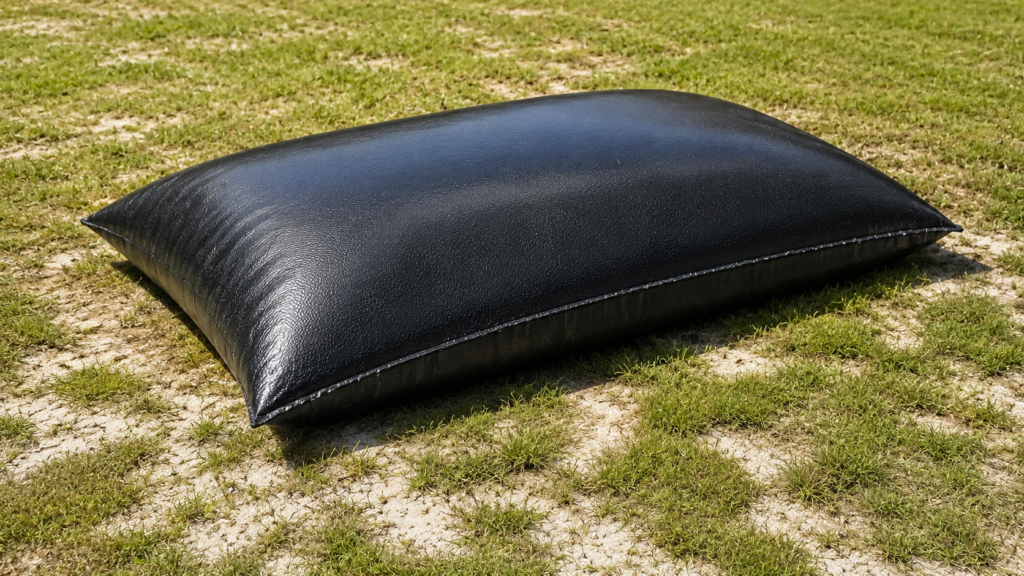

These Geotextile Tube dewatering bags are available in a range of sizes to suit all application requirements, including site restrictions and volume capacities.

APPLICATIONS

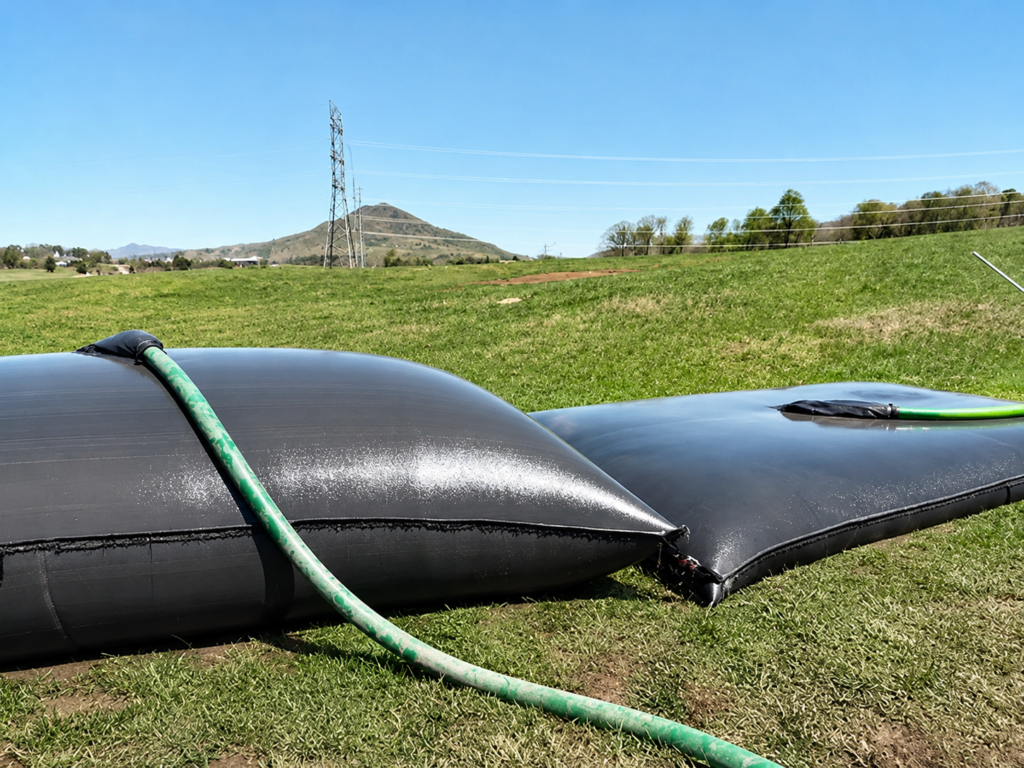

  • Sludge dewatering (municipal, biosolids, industrial)
  • Breakwater and bank protection
  • Dams, dikes, and coastal protection
  • Sediment and mining residuals containment
  • Construction site runoff management
  • Marine erosion control

The Geotextile Tube Advantage

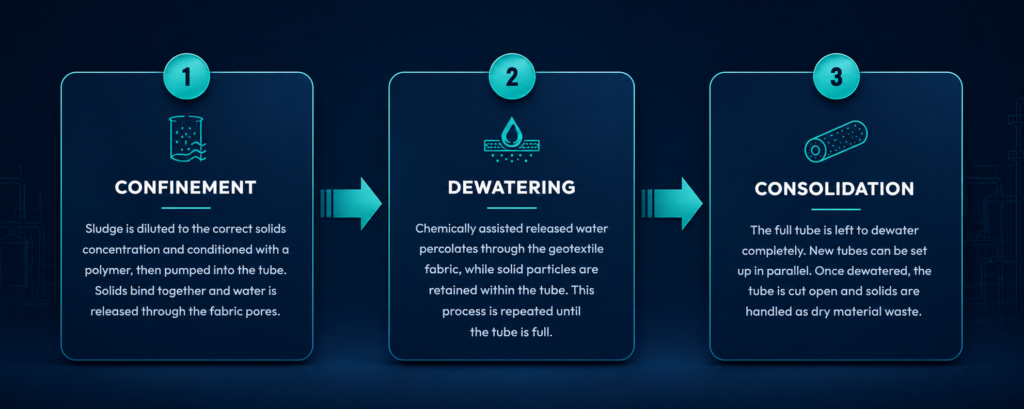

How Geotextile Bags Works

The dewatering technology operates in three simple phases making it a practical, low maintenance solution for high volume solids management.

Geotextile Tube Tables

Standard Tube Sizes & Specifications

Standard Tube Sizes & Specifications
Fabric Type Model Nom. Circ. (m) Lay Flat Width (m) Working Width (m) Max Height (m) Volume (m³/m)
HT70/95 GT4 4.5 2.2 1.6 1.1 1.5
HT70/95 GT6 6.8 3.4 2.7 1.4 3.1
HT70/95 GT9 9.0 4.5 3.7 1.5 4.8
HT70/105 GT13 13.5 6.8 5.9 1.8 9.2
HT70/105 GT18 18.0 9.0 8.0 2.0 14.2
HT120/120 GT27 27.0 13.5 12.3 2.5 27.6
HT120/120 GT36 36.0 18.0 16.7 2.7 41.2

Mechanical & Hydraulic Properties

Mechanical & Hydraulic Properties
Property Test Method Unit HT70/95 (MD/CD) HT70/105 (MD/CD) HT120/120 (MD/CD)
Tensile Strength ASTM D4595 kN/m 70 / 95 70 / 105 120 / 120
Elongation ASTM D4595 % <15 / <15 <15 / <15 <15 / <15
CBR Puncture ISO 12236 kN 8 10 15
Seam Strength ISO 10321 kN/m 75 90 100
Flow Rate at 50mm Head ASTM D4491 l/m²/s 45–50 40–45 10–15
Apparent Opening Size (O90) ASTM D4751 mm 0.45 0.40 0.30
Pore Opening Size (O90) ASTM D4751 micron 450 400 300
UV Resistance after 500 Hours ASTM D4355 % ≥90 ≥90 ≥85
